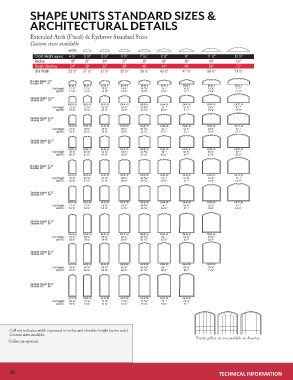

SHAPE UNITS STANDARD SIZES &

ARCHITECTURAL DETAILS

Extended Arch (Fixed) & Eyebrow Standard Sizes
Custom sizes available

Shoulder Height: 7 ½"
Shoulder RO: 8"
EA 24 8 EA 28 8 EA 32 8 EA 36 8 EA 40 8 EA 44 8 EA 48 8 EA 60 8 EA 72 8
Unit Height: 11 ⅞" 12 ⅝" 13 ⅜" 14 ⅛" 14 ¹⁵⁄ " 16 -" 16 ½" 18 ¾" 21 -"
Unit RO: 12 ⅜" 13 ⅛" 13 ⅞" 14 ⅝" 15 ⁷⁄ " 16 ½" 17 -" 19 ¼" 21 ½"
Shoulder Height: 17 ½"
Shoulder RO: 18"
EA 24 18 EA 28 18 EA 32 18 EA 36 18 EA 40 18 EA 44 18 EA 48 18 EA 60 18 EA 72 18
Unit Height: 21 ⅞" 22 ⅝" 23 ⅜" 24 ⅛" 24 ¹⁵⁄ " 26 -" 26 ½" 28 ¾" 31 -"
Unit RO: 22 ⅜" 23 ⅛" 23 ⅞" 24 ⅝" 25 ⁷⁄ " 26 ½" 27 -" 29 ¼" 31 ½"
Shoulder Height: 23 ½"
Shoulder RO: 24"
EA 24 24 EA 28 24 EA 32 24 EA 36 24 EA 40 24 EA 44 24 EA 48 24 EA 60 24 EA 72 24
Unit Height: 27 ⅞" 28 ⅝" 29 ⅜" 30 ⅛" 30 ¹⁵⁄ " 32 -" 32 ½" 34 ¾" 37 -"
Unit RO: 28 ⅜" 29 ⅛" 29 ⅞" 30 ⅝" 31 ⁷⁄ " 32 ½" 33 -" 35 ¼" 37 ½"
Shoulder Height: 35 ½"
Shoulder RO: 36"
EA 24 36 EA 28 36 EA 32 36 EA 36 36 EA 40 36 EA 44 36 EA 48 36 EA 60 36 EA 72 36
Unit Height: 39 ⅞" 40 ⅝" 41 ⅜" 42 ⅛" 42 ¹⁵⁄ " 44 -" 44 ½" 46 ¾" 49 -"
Unit RO: 40 ⅜" 41 ⅛" 41 ⅞" 42 ⅝" 43 ⁷⁄ " 44 ½" 45 -" 47 ¼" 49 ½"

Shoulder Height: 41 ½"
Shoulder RO: 42"
EA 24 42 EA 28 42 EA 32 42 EA 36 42 EA 40 42 EA 44 42 EA 48 42 EA 60 42 EA 72 42
Unit Height: 45 ⅞" 46 ⅝" 47 ⅜" 48 ⅛" 48 ¹⁵⁄ " 50 -" 50 ½" 52 ¾" 55 -"
Unit RO: 46 ⅜" 47 ⅛" 47 ⅞" 48 ⅝" 49 ⁷⁄ " 50 ½" 51 -" 53 ¼" 55 ½"

Shoulder Height: 47 ½"
Shoulder RO: 48"
EA 24 48 EA 28 48 EA 32 48 EA 36 48 EA 40 48 EA 44 48 EA 48 48 EA 60 48 EA 72 48
Unit Height: 51 ⅞" 52 ⅝" 53 ⅜" 54 ⅛" 54 ¹⁵⁄ " 56 -" 56 ½" 58 ¾" 61 -"
Unit RO: 52 ⅜" 53 ⅛" 53 ⅞" 54 ⅝" 55 ⁷⁄ " 56 ½" 57 -" 59 ¼" 61 ½"

Shoulder Height: 53 ½"
Shoulder RO: 54"

EA 24 54 EA 28 54 EA 32 54 EA 36 54 EA 40 54 EA 44 54 EA 48 54 EA 60 54
Unit Height: 57 ⅞" 58 ⅝" 59 ⅜" 60 ⅛" 60 ¹⁵⁄ " 62 -" 62 ½" 64 ¾"
Unit RO: 58 ⅜" 59 ⅛" 59 ⅞" 60 ⅝" 61 ⁷⁄ " 62 ½" 63 -" 65 ¼"
Shoulder Height: 59 ½"
Shoulder RO: 60"
EA 24 60 EA 28 60 EA 32 60 EA 36 60 EA 40 60 EA 44 60 EA 48 60 EA 60 60
Unit Height: 63 ⅞" 64 ⅝" 65 ⅜" 66 ⅛" 66 ¹⁵⁄ " 68 -" 68 ½" 70 ¾"
Unit RO: 64 ⅜" 65 ⅛" 65 ⅞" 66 ⅝" 67 ⁷⁄ " 68 ½" 69 -" 71 ¼"

Shoulder Height: 65 ½"
Shoulder RO: 66"
EA 24 66 EA 28 66 EA 32 66 EA 36 66 EA 40 66 EA 44 66 EA 48 66
Unit Height: 69 ⅞" 70 ⅝" 71 ⅜" 72 ⅛" 72 ¹⁵⁄ " 74 -" 74 ½"
Unit RO: 70 ⅜" 71 ⅛" 71 ⅞" 72 ⅝" 73 ⁷⁄ " 74 ½" 75 -"

Call out indicates width expressed in inches and shoulder height (series code).
Custom sizes available.
Colonial
Cathedral
Prairie
Prairie grilles are not available in A series.
Grilles are optional.

3030 TECHNICAL INFORMATION
